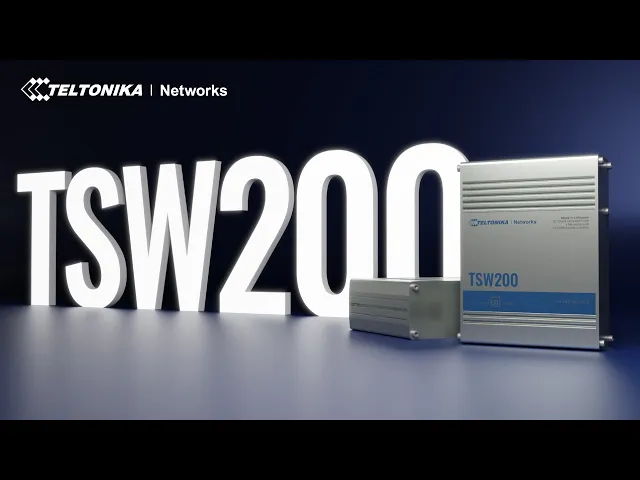

TSW200
3D MODEL
ETH
8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Fibre
2 x SFP ports
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
PoE ports
Port 1 - 8
PoE standards
802.3af and 802.3at Alternative B
PoE Max Power per Port (at PSE)
30 W
Total PoE Power Budget (at PSE)
240 W
Bandwidth (Non-blocking)
20 Gbps
Packer buffer
128 KB
MAC address table size
2K entries
Jumbo frame support
9216 bytes
Connector
2-pin industrial DC power socket
Input voltage range
7 – 57 VDC
PoE-out input voltage range
44 – 57 VDC
Power consumption
Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W
Ethernet
8 x RJ45 ports, 10/100/1000 Mbps
Fibre
2 x SFP ports
Status LEDs
1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs
Power
1 x 2-pin industrial DC power socket
Other
1 x Grounding screw
Casing material
Full aluminum housing
Dimensions (W x H x D)
132 x 44.2 x 95.1 mm
Weight
517 g
Mounting options
DIN rail or wall mounting (additional kit needed), flat surface placement
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
Regulatory
CE, UKCA, CITC, ANRT, FCC, IC, CB
Standards
EN 55032:2015 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2:2019 + A1:2021
EN 61000-3-3:2013 + A1:2019
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
CS
EN 61000-4-6:2014
DIP
EN IEC 61000-4-11:2020
Standards
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
