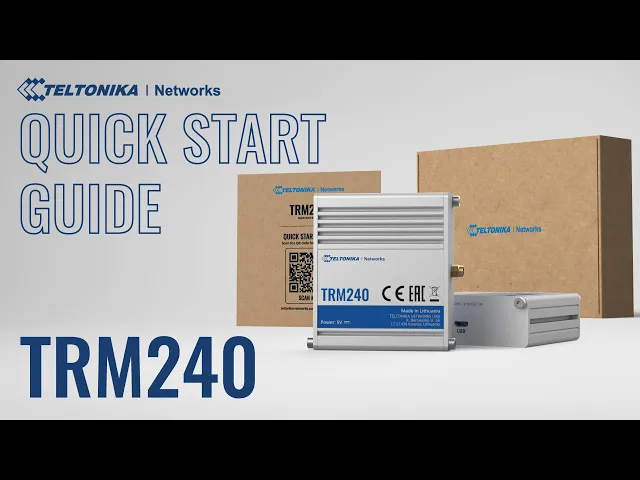

TRM240
3D MODEL
Mobile module
4G (LTE) – Cat 1 up to 10 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
Connector
microUSB
Input voltage range
5V - powered via microUSB
Power consumption
3.2 W Max
Status LEDs
1 x Power LED, 1 x Network LED, 1 x LTE LED
SIM
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power
1x microUSB
Antennas
1 x SMA for LTE
Dimensions (W x H x D)
74.5 x 25 x 64.5 mm
Casing material
Aluminium housing
Weight
131 g
Mounting options
DIN rail, Flat surface
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
Management Software
Windows Connection Manager (NDIS driver)
USB Driver
Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x
RIL Driver
Android 4.x/5.x/6.x/7.x/8.x
NDIS Driver
Windows 7/8/8.1/10
Gobinet Driver
Linux 2.6/3.x/4.1~4.14
Linux Driver
3.x (3.4 and later)/4.1~4.14
Regulatory
CE, UKCA, EAC, UCRF, Kenya, ICASA
Standards
Draft EN 303 446-1 V1.1.0
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
Standards
EN 301 511 V12.5.1
EN 301 908-1 V13.1.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.1.1
Standards
CE: EN 62368-1:2014 + A11:2017, EN 62311:2008
