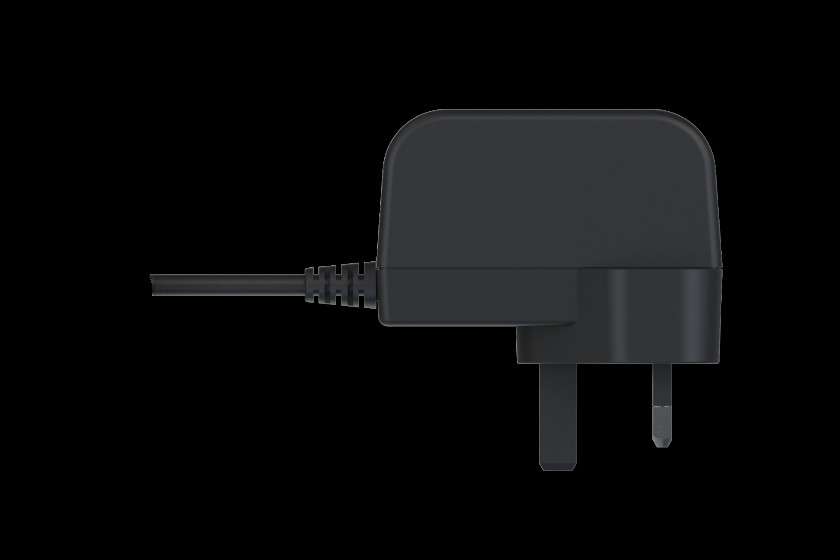

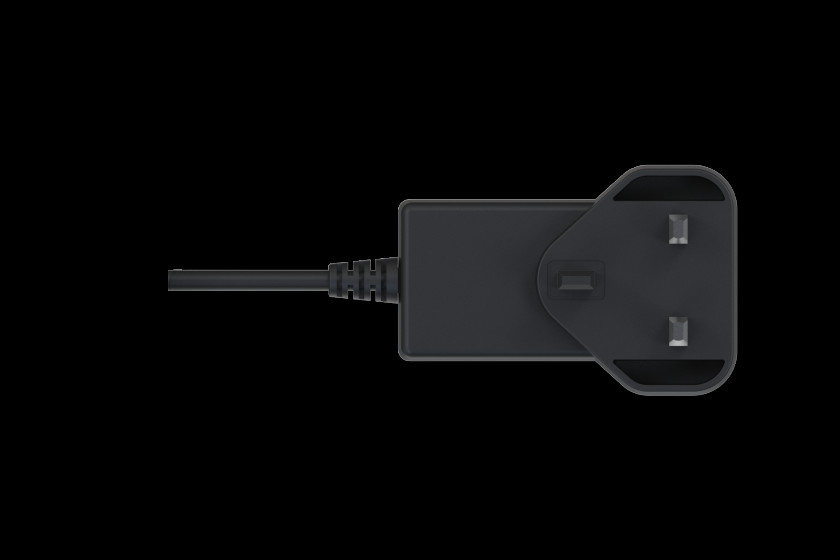

UK 2-PIN POWER SUPPLY, 18 W

Order code: PR315UKA

DOWNLOAD DATASHEET
特徴
ダウンロード
注文
Technical Data

  • Input voltage

    100 – 240 VAC

  • Input frequency

    50 / 60 Hz

  • Input current

    0.6 A

  • Output voltage

    12 VDC

  • Output current

    1.5 A

  • Input voltage absolute maximum

    90 – 264 VAC

  • Input frequency absolute maximum

    47 – 63 Hz

  • Inrush current

    60 A

  • Output voltage absolute maximum

    11.4 – 12.6 VDC

  • Short circuit protection

    ✓

  • HIPOT (dielectric withstand test)

    Primary to Secondary: 4242 VDC

  • MTBF

    50000 h

  • Input connector

    UK (Type G)

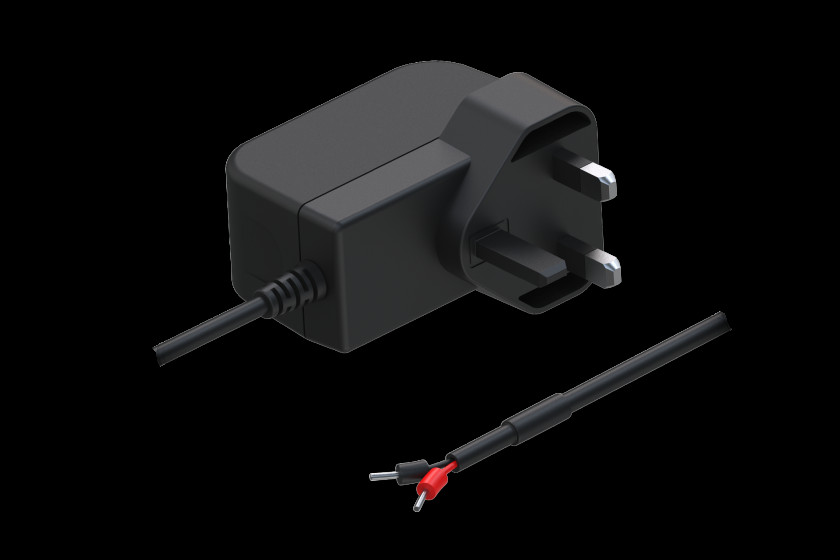

  • Output connector

    2-pin, with cord end terminals

  • Weight

    106 g

  • Certification

    Safety: IEC 62368-1:2014,

    EN 62368-1:2014+A11:2017

    EMC: EN 55032:2015, EN 55035:2017,

    EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019

Standard order codes

Order Code

PR315UKA

HS Code

850440

HTS Code

8504.40.95

For more information on all available packaging options – please contact us directly.

対応製品


TSW030


TSW101


TSW210


TSW212
