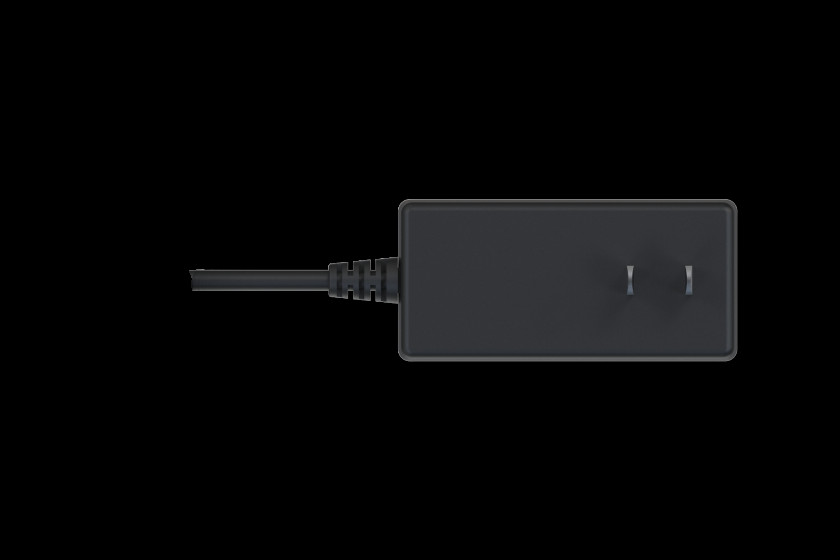

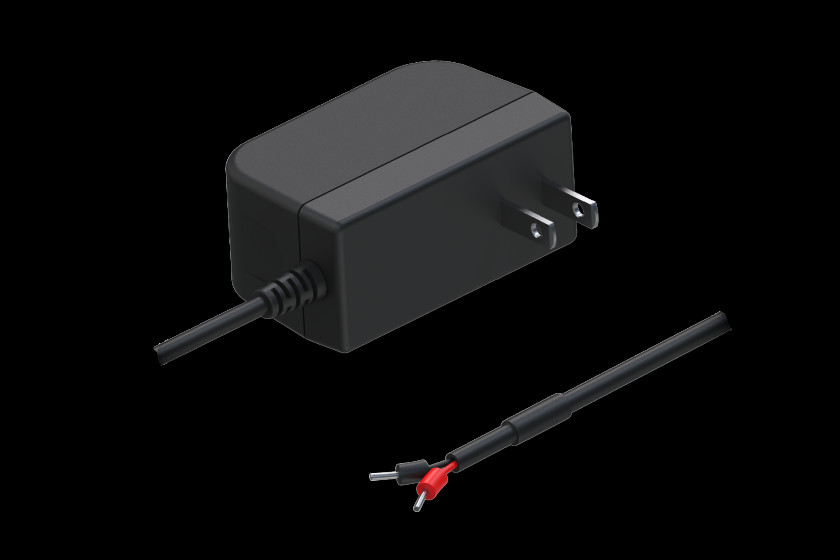

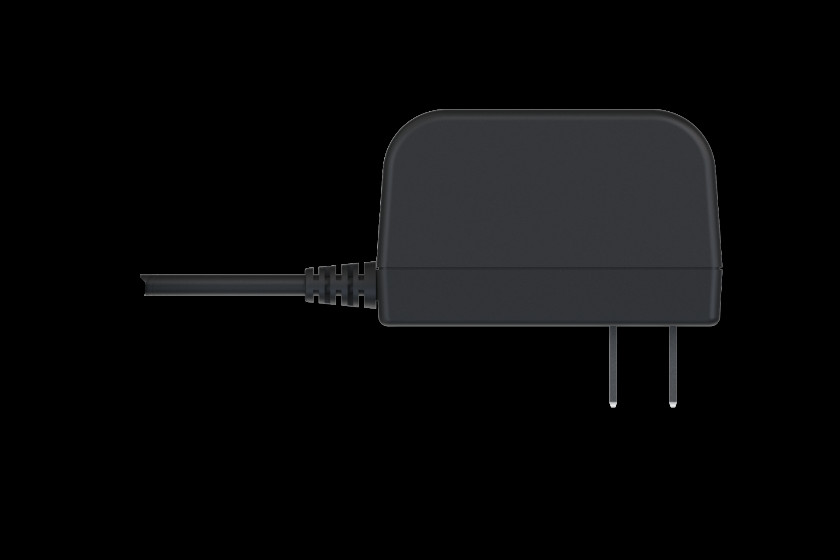

US 2-PIN POWER SUPPLY, 18 W

Order code: PR315USA

DOWNLOAD DATASHEET
特城
ダりンロヌド
泚文

  • Input voltage

    100 – 240 VAC

  • Input frequency

    50 / 60 Hz

  • Input current

    0.6 A

  • Output voltage

    12 VDC

  • Output current

    1.5 A

  • Input voltage absolute maximum

    90 – 264 VAC

  • Input frequency absolute maximum

    47 – 63 Hz

  • Inrush current

    60 A

  • Output voltage absolute maximum

    11.4 – 12.6 VDC

  • Short circuit protection

    ✓

  • HIPOT (dielectric withstand test)

    Primary to Secondary: 4242 VDC

  • MTBF

    50000 h

  • Input connector

    US (Type A)

  • Output connector

    2-pin, with cord end terminals

  • Weight

    106 g

  • Certification

    Safety: CSA C22.2 No. 62368-1-14, 2nd Ed.

    EMC: FCC Part 15, Subpart B: 2023,

    ANSI C63.4:2014 ammended as per ANSI C63.4:2017

Standard order codes

Order Code

PR315USA

HS Code

850440

HTS Code

8504.40.95

For more information on all available packaging options – please contact us directly.
