CONNECTORS SET

Order code: PR5MEC15

DOWNLOAD DATASHEET
Features
Ordering
2X5 PIN CONNECTOR

  • GENERAL

  • Voltage rating

    300 V

  • Current rating

    8 A

  • Withstand voltage

    1600 V/1min

  • Wire range AWG

    16 – 24 AWG

  • Operating temperature

    –40 °C ~ +105 °C

  • Insulation material

    PA66

  • Internal contacts material

    Copper alloy

  • Internal contacts finishing

    Sn plated

  • ADDITIONAL

  • Strip Length

    9 – 10 mm

  • Pitch

    3.5 mm

  • Shrapnel material

    Stainless steel

  • Conductor cross section

    0.2 – 1.5 mm²

  • Poles

    2 x 5

  • Flammability rating

    UL 94 V-0

  • RoHS

    ✓

  • REACH

    ✓

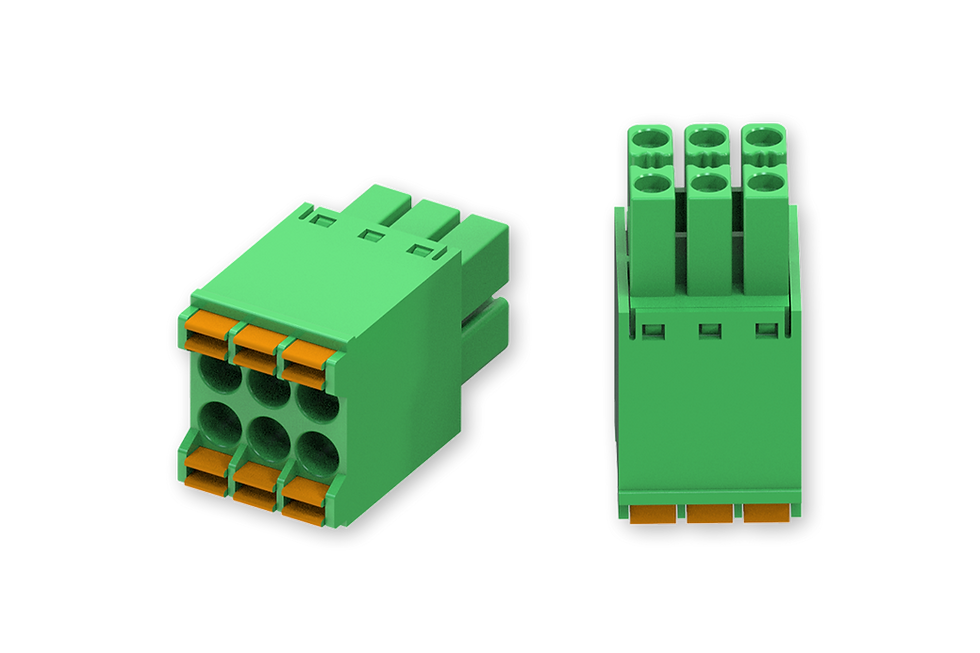

2X3 PIN CONNECTOR

  • GENERAL

  • Voltage rating

    300 V

  • Current rating

    8 A

  • Withstand voltage

    1600 V/1min

  • Wire range AWG

    16 – 24 AWG

  • Operating temperature

    –40 °C ~ +105 °C

  • Insulator material

    PA66

  • Internal contacts material

    Copper alloy

  • Internal contacts finishing

    Sn plated

  • ADDITIONAL

  • Strip Length

    9 – 10 mm

  • Pitch

    3.5 mm

  • Shrapnel material

    Copper alloy

  • Conductor cross section

    0.2 – 1.5 mm²

  • Poles

    2 x 3

  • Flammability rating

    UL 94 V-0

  • RoHS

    ✓

  • REACH

    ✓

Standard order codes
Order Code

PR5MEC15

HS Code

853690

HTS Code

8536.90.10

For more information on all available packaging options – please contact us directly.

Compatible products


RUT956
