Routers, gateways, and modems: what's the difference?

Imagine you are setting up connectivity for a network of remote water meters spread across a city. The meters need to send readings to a central platform, share data across a local network, and some of them are buried underground where signals barely reach. Which device do you need? The answer is: probably all three, each doing a different job.

Modems, routers, and gateways may look similar at first glance, yet each plays a distinct role. Picking the wrong one can mean missing features your deployment needs or paying for capabilities it will never use. Understanding how these devices differ helps ensure that every part of your network performs the role it was designed for.

What is a modem?

In our water meter scenario, the first challenge is simple: getting each meter connected to the internet. That is exactly the job of a modem.

It converts digital data into signals that can travel through communication networks and translates incoming signals back into usable data. Because its role is limited to establishing this connection, a modem does not manage network traffic, connect multiple devices, or provide advanced networking features.

This simplicity comes with a practical advantage: modems are the most affordable option in the connectivity device lineup. However, it is worth noting that communication typically happens over USB, meaning the connected device needs the appropriate drivers installed to work with it.

Depending on how much data your application needs to transmit and where your devices are located, different modem technologies may be suitable.

Remote monitoring with an NB-IoT modem

Many remote monitoring applications rely on devices that transmit small amounts of data over long periods of time. In such cases, low-power cellular technologies such as LTE-M and NB-IoT provide an efficient way to maintain connectivity while minimizing energy consumption and network usage.

While both are designed for low-power IoT use, they serve different needs: LTE-M supports higher data rates and lower latency, making it better suited for mobile applications such as asset tracking or devices that require more frequent data exchange. NB-IoT trades speed for deeper signal penetration and extended range, making it the preferred choice for stationary devices in hard-to-reach locations such as basements, underground facilities, or remote infrastructure.

Teltonika's TRM250 industrial USB modem supports these technologies, enabling sensors, meters, and other monitoring equipment to transmit data reliably even in challenging environments.

Support high-bandwidth applications with a 5G modem

Some IoT deployments generate large volumes of data that must be transmitted quickly and with minimal delay. Technologies such as 5G provide the bandwidth and low latency required for these scenarios, making them suitable for deployments like video surveillance systems that stream high-resolution footage to remote monitoring centres. The TRM500 5G modem supports connectivity speeds of up to 3.4 Gbps while remaining compatible with existing 4G and 3G networks, enabling demanding devices to transmit data efficiently.

What is a router?

The meters are online, but there is more to solve. They need to share a single cellular connection, communicate with a local control unit, and protect their transmissions from interference. A router handles all of this.

While a modem gets a device online, a router manages how that connection is shared across a network, controlling how data moves between multiple devices and allowing different systems to communicate through the same connection. To support a wide range of deployments, routers often include interfaces such as Ethernet ports, Wi-Fi, or cellular connectivity, along with built-in features like firewalls and VPNs that help protect transmitted data.

Provide reliable connectivity for transportation systems

Modern transportation systems rely on continuous data exchange for monitoring, passenger information, and onboard services, making reliable connectivity essential. Vehicles and rail systems also present challenging operating conditions, where vibration, movement, and strict safety requirements can affect standard networking equipment.

Teltonika ATRM50 5G router is designed for such environments, combining high-speed 5G connectivity with rugged hardware built for transportation deployments. M12 Gigabit Ethernet ports and M12 power connectors provide secure connections in conditions where vibration and movement are common, while certifications such as EN 45545-2 and EN 50155 ensure compliance with railway safety standards.

Large-scale IoT deployments simplified with eSIM router

When IoT deployments operate across different regions and mobile networks, it makes managing physical SIM cards difficult. Built-in eSIM functionality based on the SGP.22 architecture allows multiple operator profiles to be stored and managed remotely, simplifying connectivity management in large-scale deployments.

This capability is supported by the RUT241, a compact industrial eSIM router that combines 4G LTE connectivity, Wi-Fi, and two Ethernet ports for flexible device integration.

Power connected devices through a PoE+ industrial router

You might not think twice about cabling when planning an IoT deployment – until you are halfway through an installation and realise that every camera, access point, and sensor needs not just a data connection, but a power source too. Suddenly you are running twice the cables, doubling the installation time, and adding cost at every step.

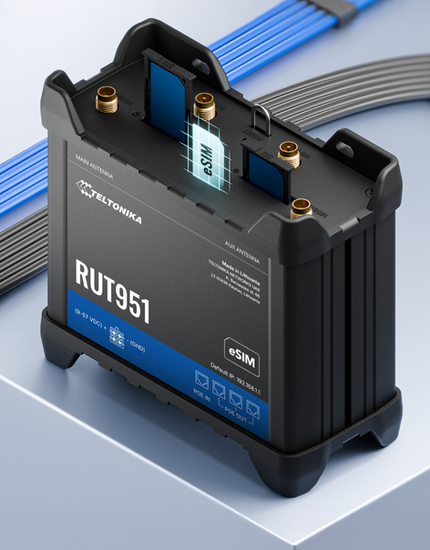

PoE+ addresses this challenge by delivering both through a single cable. With four PoE+ Ethernet ports and reliable 4G connectivity, the RUT951 PoE+ router allows connected equipment to operate through a single cable.

Uninterrupted connectivity with a dual-5G router

Temporary event venues or remote construction sites may rely entirely on cellular networks for internet access, where a single connection can quickly become a weak point if the signal drops. Using two 5G modems allows connectivity to be maintained through multiple mobile networks, reducing the risk of service interruptions. Such redundancy is implemented in the RUTM52, which supports dual SIM, eSIM, and multi-WAN capabilities to balance traffic or switch networks automatically when needed.

Fast & stable home internet with a 5G Wi-Fi 7 router

In some locations, fibre or cable broadband may be unavailable or difficult to deploy, making reliable internet access harder to achieve. Cellular technologies such as 5G can provide a practical alternative by delivering high-speed connectivity without relying on fixed infrastructure.

Altos, Teltonika’s first Wi-Fi 7 consumer router, combines 5G access with next-generation Wi-Fi 7 to provide fast and stable internet for residential environments, while RutOS and compatibility with the Remote Management System (RMS) add advanced network management capabilities.

What is an IoT gateway?

Back to our water meters. Some of them need a dedicated device to handle the connection between their communication technology and the wider network. This is the problem a gateway exists to solve. Think of it as a translator between two people who speak different languages: without it, the two sides simply cannot communicate.

Teltonika's gateways bridge this gap by translating or forwarding data between different communication technologies, allowing industrial systems to connect with external networks and cloud platforms.

Upgrade existing equipment with LTE gateway

Many industrial machines and control systems were not originally designed with built-in internet connectivity, making remote monitoring or data transmission difficult. In such cases, an additional device is required to connect existing equipment to modern networks. The TRB140 LTE gateway fulfils this role by providing LTE Cat 4 connectivity in a compact form factor. Its Gigabit Ethernet interface and customizable Linux environment allow legacy systems to be integrated into modern network infrastructures.

Remote monitoring in hard-to-reach locations with an NB-IoT gateway

Utility infrastructure and environmental monitoring systems often operate in locations where reliable connectivity is difficult to maintain, such as basements, underground facilities, or remote rural areas. Technologies like NB-IoT are designed for such environments, providing long-range coverage and strong signal penetration.

The TRB256 gateway supports NB-IoT connectivity, allowing sensors, meters, and other monitoring equipment to transmit data even in challenging conditions. Interfaces such as RS232, RS485, digital inputs and outputs, and Ethernet enable integration with industrial equipment.

Transmit large volumes of data with an industrial 5G gateway

Certain systems generate large volumes of data that must be transmitted quickly to remote platforms for monitoring or analysis. Industrial cameras, payment terminals, and automated equipment can overwhelm slower network connections when operating in real time.

High-speed 5G connectivity provides the bandwidth required for such applications. This challenge is addressed by the TRB501 5G gateway, which combines a 2.5 Gbps Ethernet port and carrier aggregation support, enabling fast and reliable data transmission.

Find the best connectivity device for your IoT project needs!

Our water meter network could use all three, depending on circumstances: modems connecting each meter to the internet, routers managing data flow across the network, and gateways bridging the older equipment that could not connect on its own. Most real-world IoT deployments are not so different – the devices change, but the underlying questions remain the same: how do I connect, how do I manage, and how do I bridge the gap?

If your device only needs to get online, a modem is enough. If you need to connect and manage multiple devices on the same network, you need a router. If your existing equipment uses industrial protocols that are not IP-compatible, you need a gateway. Many real-world deployments use all three.

Not sure which Teltonika device fits your deployment? Our team is ready to help you find the right device – explore our portfolio or get in touch to discuss your connectivity needs.
