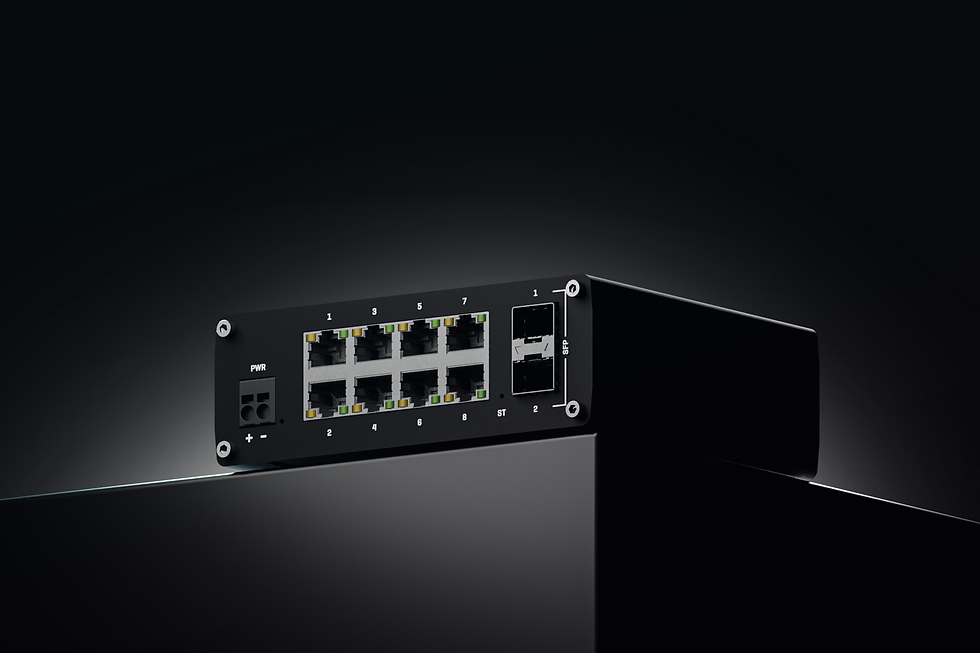

TSW212
3D MODEL
ETH
Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
Fibre
2 x SFP ports
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3z
EtherNet/IP
Yes
Profinet (class B)
Yes
SNMP V2, V3
Yes
LLDP
Yes
Network Management
802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN
MRP
MRP client role, MRP manager role
L2 features
Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP
DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
Port Settings
Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring
L3 Features
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
Authentication
PAM — preshared key, Radius & TACACS+, IP & login attempts block
QOS
Port priority, DSCP priority, 802.1p priority, TOS
Scheduling method
SP/WFQ/WRR
Bandwidth control
Rate limiting, storm control
Traffic Shaper
Port-based shaping
Tools
Cable diagnostic, ping, traceroute, nslookup
Ping reboot
Capability to restart PoE in a specific port
Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
RAM
128MB, DDR3
FLASH storage
16 MB serial flash
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration
Operating system
WitchOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++
Development tools
SDK package with build environment provided
Bandwidth (Non-blocking)
20 Gbps
Forwarding rate
14.88 Mpps
Packet buffer
512 KB
MAC address table size
8K entries
Jumbo frame support
10000 bytes
Connector
2-pin industrial DC power socket
Input voltage range
7 – 57 VDC
Power consumption
Idle: < 2.5 W / Max: 6 W
Ethernet
8 x RJ45 ports, 10/100/1000 Mbps
Fibre
2 x SFP ports
Status LEDs
1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power
1 x 2-pin industrial DC power socket
Reset
Software reset button
Other
1 x Grounding screw
Casing material
Anodized aluminum housing and panels
Dimensions (W x H x D)
132 x 44.2 x 122.2 mm
Weight
615 g
Mounting options
Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
Regulatory
CE, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH, NBTC, Profinet
Standards
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2: 2019 + A1:2021
EN 61000-3-3: 2013 + A1:2019 + A2:2021
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
CS
EN 61000-4-6:2014
DIP
EN 61000-4-11:2020
Standards
CE: EN IEC 62368-1:2020 + A11:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
