SWM280
3D MODEL
Fiber
4 x SFP ports
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
ETH
Multi-layer managed 24 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Profinet
Profinet Class B conformance (available with optional order code)
EtherNet/IP
Yes
SNMP V2, V3
Yes
LLDP
Yes
Network Management
802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN
Routing
Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP)
MRP
MRP client role, MRP manager role
L2 features
Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP
DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
Port Settings
Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
L3 Features
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
QOS
Port priority, DSCP priority, 802.1p priority, TOS
Scheduling method
SP/WFQ/WRR
Bandwidth control
Rate limiting, storm control
Traffic Shaper
Port-based shaping
Tools
Cable diagnostic, ping, traceroute, nslookup
Ping reboot
Capability to restart PoE in a specific port
Authentication
PAM — preshared key, Radius & TACACS+, IP & login attempts block
VLAN
Port VLAN separation
TPM
Identification and authentication module, TPM 2.0 standard
802.1x
Port-based network access control client and server
MAC filtering support
Enable MAC filtering functionality to control access to the TSW. This feature allows users to permit or deny specific devices from communicating through the TSW by entering their MAC addresses
Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
CPU
Realtek, single core, 500MHz, MIPS-4KEc
RAM
128MB, DDR3
FLASH storage
16 MB serial flash
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration
Factory settings reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
Operating system
TSWOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++
Development tools
SDK package with build environment provided
Package Manager
The Package Manager is a service used to install additional software on the device
Bandwidth (Non-blocking)
56 Gbps
Forwarding rate
83.33 Mpps
Packet buffer
512 KB
MAC address table size
8K entries
Jumbo frame support
10000 bytes
PoE+ ports
Port 1-12
PoE standards
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A
PoE Max Power per Port (at PSE)
30 W
Total PoE Power Budget (at PSE)
300 W

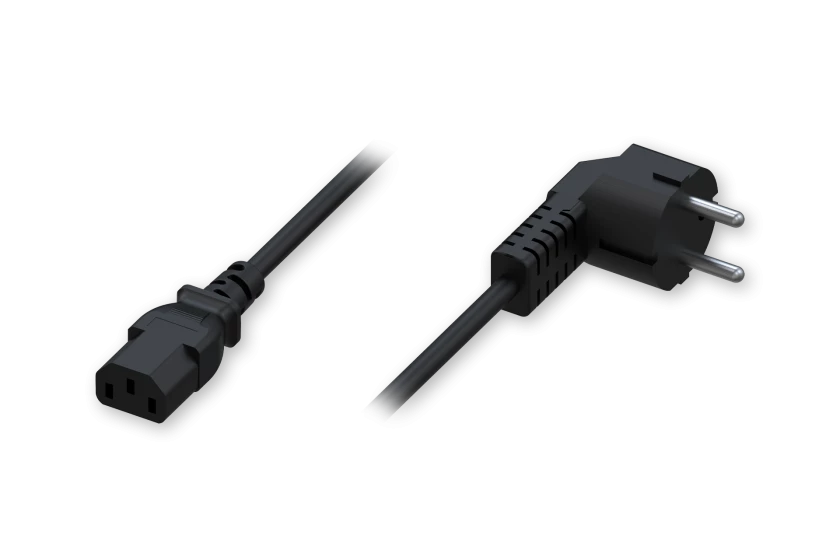

Connector
C14 connector
Input voltage range
100-240 VAC, 50/60 Hz
Power consumption
Idle: 7.5 W / Max: 325 W / PoE Max: 300

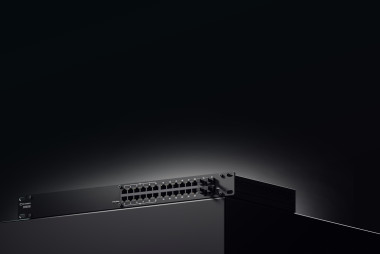

Ethernet
24 x RJ45 ports, 10/100/1000 Mbps
Fiber
4 x SFP ports
Status LEDs
1 x Power LED, 48 x ETH status LEDs, 1 x Status LED, 4 x SFP status LEDs
Power
1 x C14 connector
Reset
Software reset button
Other
1 x Grounding screw
Casing material
Anodized aluminum housing and panels
Dimensions (W x H x D)
483 x 44 x 234 mm
Weight
1842 g
Mounting options
Rack mounting kit
Operating temperature
0 °C to 50 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
Regulatory
CE, UKCA, CB, RCM, FCC, IC
