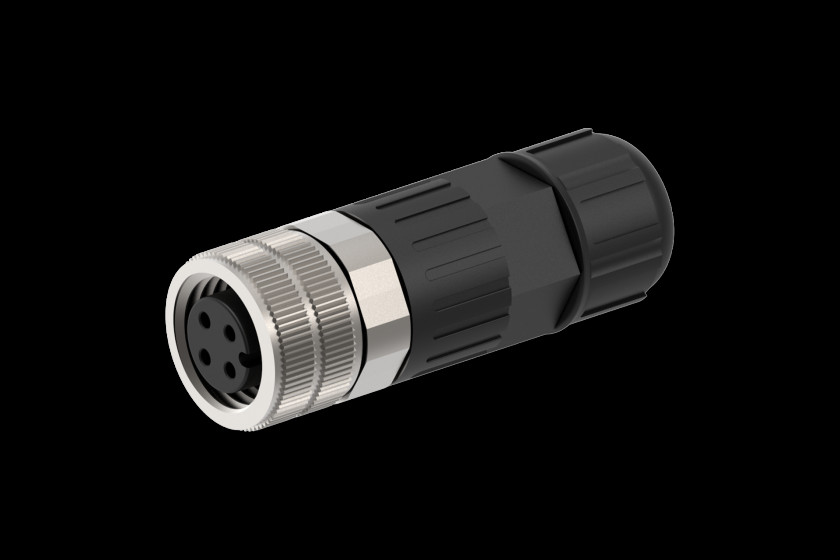

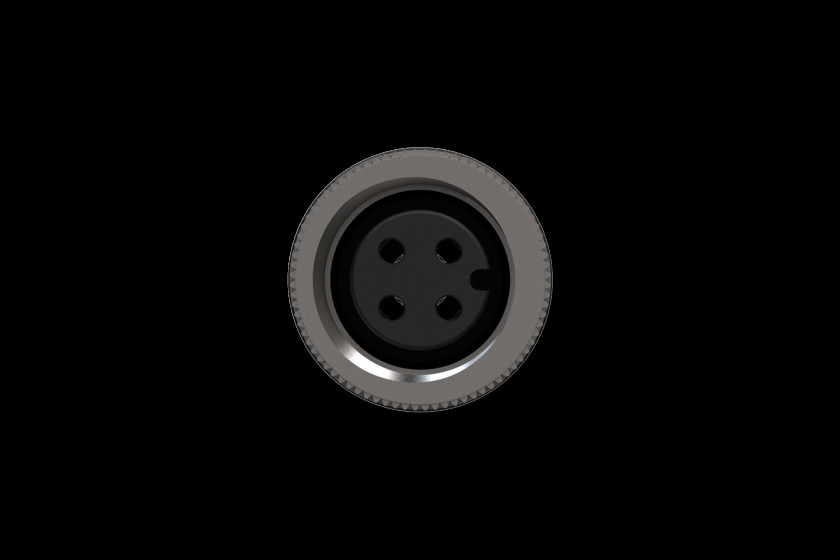

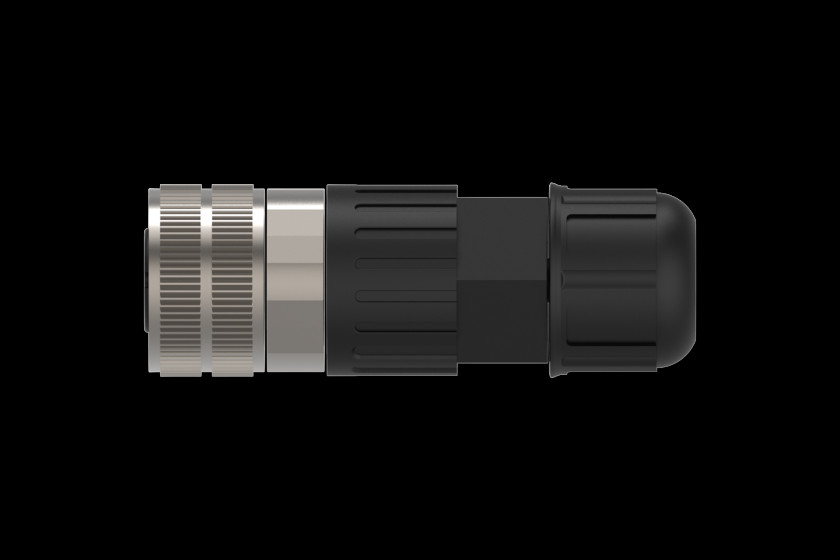

M12 A TYPE 4-PIN FEMALE CONNECTOR

Order code: PR40119K

DOWNLOAD DATASHEET
Features
Downloads
Ordering
MECHANICAL/ENVIRONMENTAL

  • Voltage rating

    250 V

  • Current rating

    4 A

  • Contact resistance

    ≤ 10mΩ

  • Wire range AWG

    24 (0.5 mm²) / contact

  • Temperature range

    -25 °C to +85 °C

  • Mounting method

    Screwable (M12)

  • Life - number of mating cycles

    > 500

  • IP rating

    IP67 (when plugged in) / IP68 (when plugged in)

  • Housing material

    Nickel plated brass / plastic

  • Seals for calbe outer diameter

    Ø 4.0 mm - 8.0 mm

  • Weight

    26 g

  • RoHS

    ✓

  • REACH

    ✓

  • UL 94 V-0

    ✓

Standard order codes

Order Code

PR40119K

HS Code

853690

HTS Code

8536.90.10

For more information on all available packaging options – please contact us directly.

Compatible products


ATRM50
